CultiLight VertiFlux™ Vertical Farming LED Grow Light – CL-GL05

Product Overview

The CultiLight VertiFlux™ CL-GL05 is engineered specifically for vertical farming systems producing leafy greens and aromatic herbs. Designed for rack-based cultivation environments, this high-efficiency LED fixture delivers uniform full-spectrum illumination that supports vigorous plant growth, consistent crop quality, and high yields.

Ideal for crops such as lettuce, basil, parsley, cilantro, and other leafy greens, the CL-GL05 provides wide light distribution and optimized photosynthetic performance across stacked growing layers.

With durable aluminum construction, high-transmission optical materials, and IP65 environmental protection, the VertiFlux™ series provides reliable lighting performance for commercial indoor farms and controlled environment agriculture systems.

Culti Light CL-GL05 Culti Light CL-GL05 Horticulture vertical farm growing light

Key Features

• Designed for vertical farming rack systems
• Optimized lighting for lettuce and fresh herbs
• High photon efficiency ≥ 2.3 µmol/J
• Wide 120° radiation angle for even coverage
• Durable aluminum housing with excellent heat dissipation
• Polycarbonate optics with >90% light transmission
• IP65 protection for humid indoor farming environments
• 0-10V dimming compatibility
• Modular installation with external driver

Vertical Farming Lighting Design

The CL-GL05 fixture is designed as a single-bar LED module installed in groups of five bars with an external driver.

This modular configuration allows growers to adapt lighting layouts to various rack widths and cultivation systems while maintaining uniform light distribution across each plant layer.

The design supports flexible installation in multi-tier vertical farms, hydroponic racks, and controlled-environment agriculture facilities.

Technical Specifications

Specifications may vary depending on selected spectrum and system configuration.

Specification	CL-GL05
Item Model	CultiLight CL-GL05
Power Consumption	108 W
System Efficacy	≥ 2.68 µmol/J
PAR Output	≥ 268 µmol/s
IP Rating	IP65
Input Voltage	120-277 V AC
Frequency	50-60 Hz
Current Range	1A @100V / 0.42A @240V
Isolation Class	Class I
Heat Generated	136-341 BTU/h
Power Factor	>0.95
Dimming	0-10 V
Dimensions	2418 × 55.8 × 35.1 mm
Net Weight	0.8 kg
Quantity per Carton	6 pcs
Operating Temperature	0°C – 40°C
Storage Temperature	−40°C – 70°C
Warranty	5 Years

Materials & Construction

Aluminum Housing

The CL-GL05 fixture uses an aluminum housing designed for efficient heat dissipation and corrosion resistance.

• excellent thermal conductivity
• lightweight structural design
• long-term durability in humid environments

Polycarbonate Optical Cover

The optical system uses a polycarbonate cover that provides excellent light transmission and durability.

• >90% visible light transmission
• high impact resistance
• lightweight alternative to glass optics

Light Distribution

The VertiFlux™ CL-GL05 features a 120° radiation angle, providing wide light distribution across growing trays.

This helps deliver uniform illumination across the plant canopy while reducing shadow zones between plants.

The result is more consistent plant growth across each rack layer.

Coverage angle

CultiLight CL-GL05 Coverage angle

Typical Applications

The CL-GL05 is ideal for indoor cultivation systems producing leafy greens and herbs.

Common applications include:

• vertical farming systems
• hydroponic rack cultivation
• indoor lettuce production
• basil and herb cultivation
• controlled environment agriculture (CEA)

Optional Mounting Accessories

Different mounting configurations are available depending on the cultivation system.

Available accessories include:

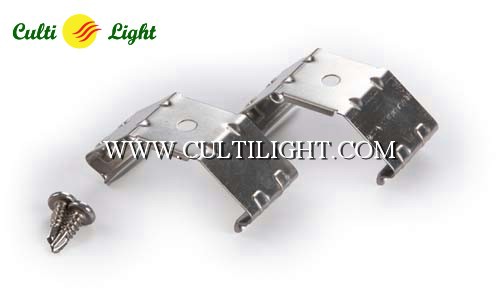

Low Ceiling Mounting Bracket

Designed for compact rack installations.

Culti Light CL-GL05 Horticulture horizontal vertical growing light low clip accessories

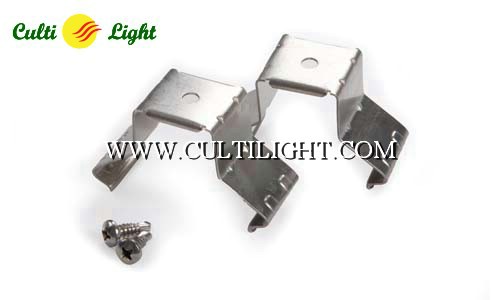

High Ceiling Mounting Bracket

Allows installation in taller vertical farming structures.

Culti Light CL-GL05 Horticulture horizontal vertical growing light high clip accessories

Ratchet Pulley Suspension System

Adjustable hanging system for flexible installation heights.

Culti Light CL-GL05 Horticulture horizontal ratchet hanger rope accessories

Certifications & Compliance

The CultiLight CL-GL05 meets international electrical safety and environmental standards.

• ETL Certification
• CE Certification
• Low Voltage Directive (LVD)
• Electromagnetic Compatibility Directive (EMC)
• RoHS Directive

System Integration

CultiLight vertical farming lighting systems can be integrated with custom drivers, cabling solutions, and lighting control systems designed for indoor agriculture facilities.

Our team can assist with lighting layout design and system configuration for vertical farming installations.
