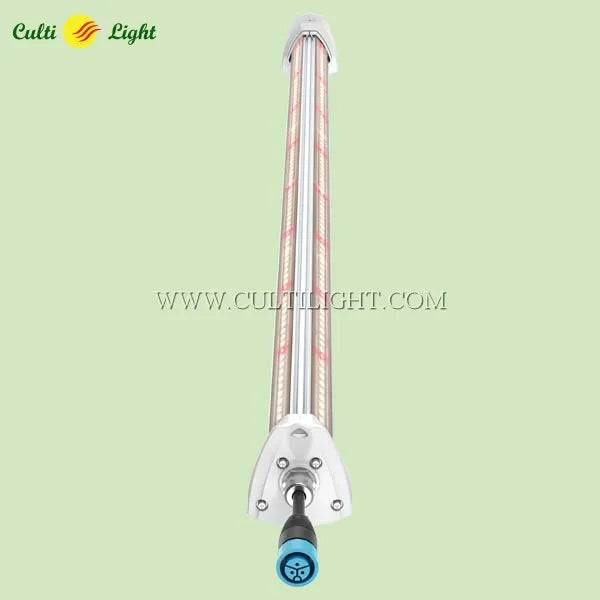

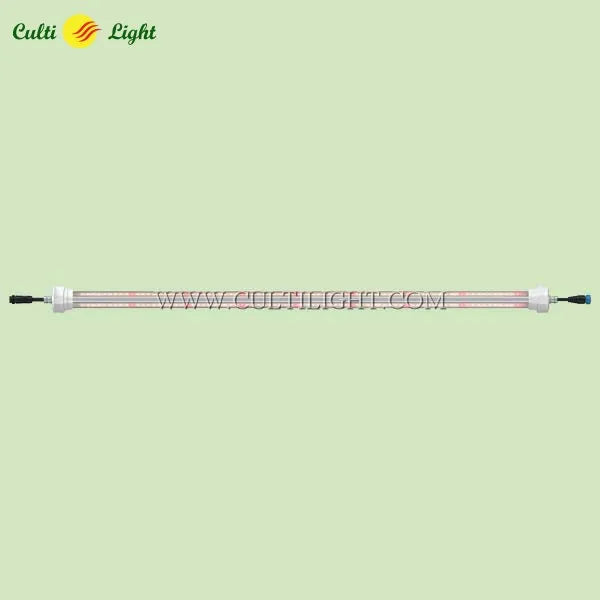

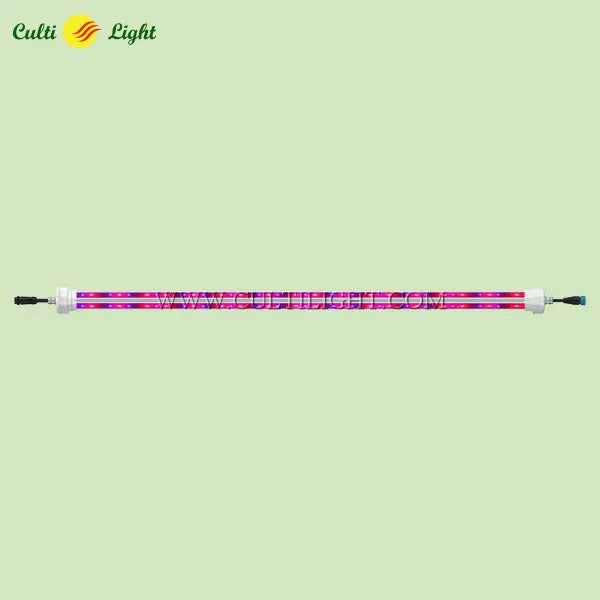

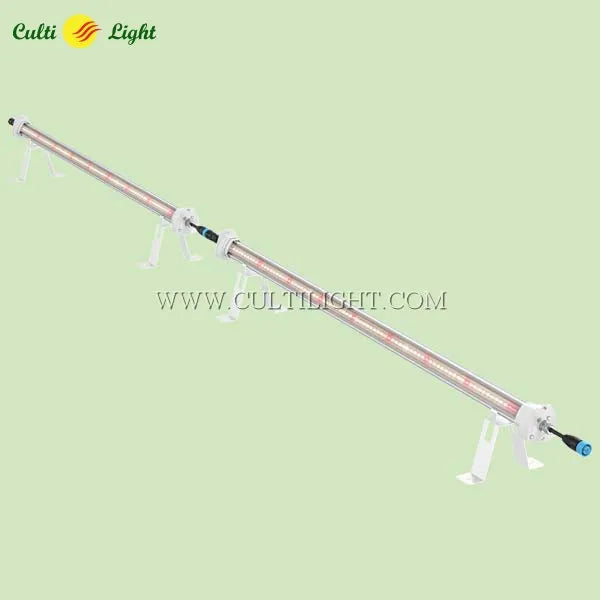

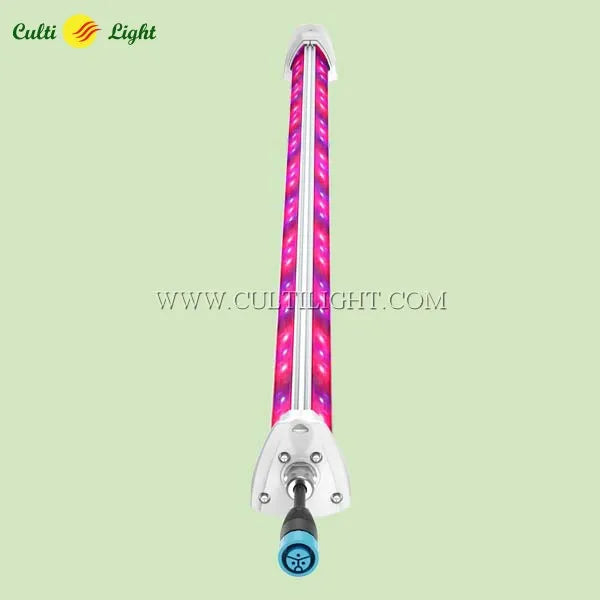

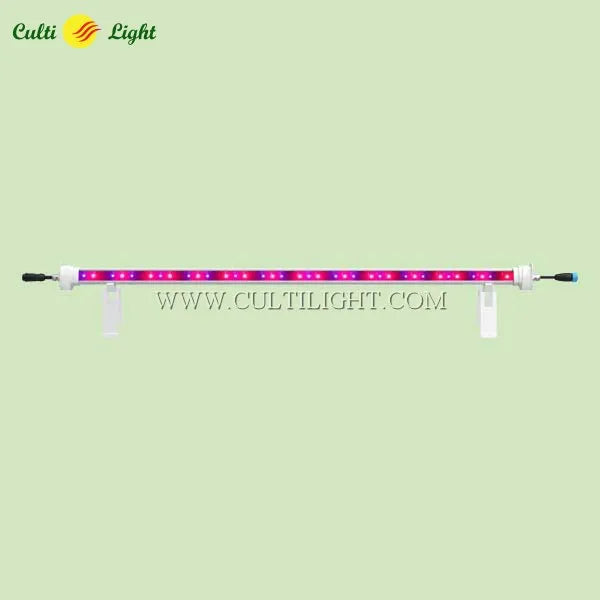

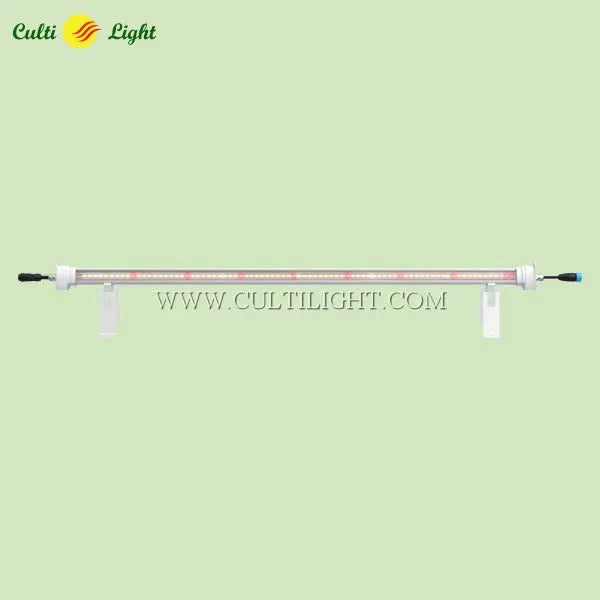

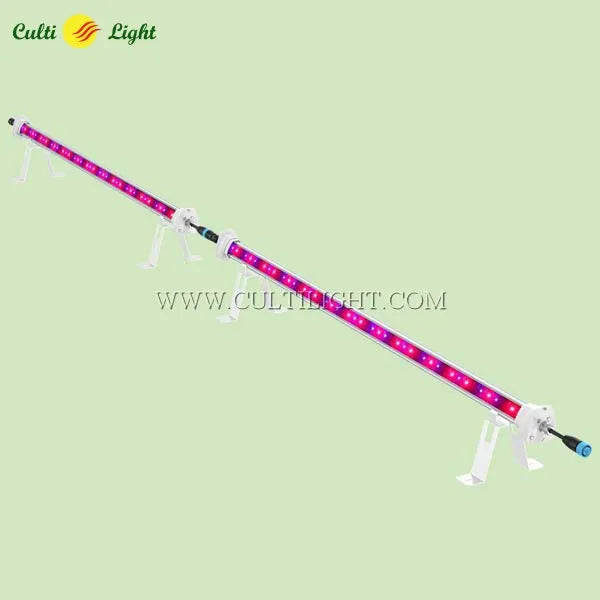

CultiLight CL‑GL03‑75 Inter‑Canopy LED Grow Light

The CultiLight CL‑GL03‑75 inter‑canopy LED grow light is a high‑efficiency designed to deliver supplemental illumination exactly where plants need it most — beneath the canopy. Unlike traditional overhead fixtures that only reach the top leaves, this innovative solution ensures lower foliage and fruits receive consistent light, boosting photosynthesis and overall crop productivity.

Engineered for greenhouse and vertical farming environments, the CL‑GL03‑75 can be mounted overhead or installed as an under‑canopy grow light. Its double‑sided 120° radiation angle spreads illumination evenly across a wide area, reducing shadow zones and promoting uniform plant development. Growers of tomatoes, cucumbers, cannabis, and leafy greens benefit from improved yields, enhanced quality, and greater energy efficiency.

Durability is built in. The housing is crafted from aluminum for superior heat dissipation and natural corrosion resistance, while the polycarbonate (PC) optics transmit over 90% of visible light with excellent impact resistance. Rated IP65, the fixture is dust‑tight and protected against water jets, ensuring reliable operation in demanding horticultural environments.

The CL‑GL03‑75 offers flexible installation with daisy‑chain capability, external driver connection, and optional bracket or rope kits. With system efficacy up to 2.3 µmol/J, growers can achieve high performance while reducing energy costs. ETL and CE certifications guarantee compliance with international safety and quality standards.

Whether used as a hanging fixture or integrated into an inter‑canopy system, the CultiLight CL‑GL03‑75 inter‑canopy LED grow light provides a powerful, efficient, and scalable solution for modern horticulture. Backed by a 5‑year warranty, it’s the dependable choice for growers seeking healthier plants, higher yields, and optimized greenhouse lighting.

CULTI LIGHT CL-GL03-75 - inter-canopy LED grow light

Under canopy lights, also known as supplemental or inter-canopy lighting, are a type of growing light that is designed to be installed beneath the canopy of cannabis or other plants particularly like high-wire crops like tomatoes and cucumbers.

Unlike the standard overhead grow lights, which are primarily illuminating the tops of the plants, the under-canopy lighting is deliberately placed beneath to illuminate the lower regions of the plant canopy to ensure that lower leaves and fruits receive adequate light.

Some of the benefits of inter-canopy Led grow light.

• Yield improvements: The inter-canopy light can boost photosynthesis and overall plant productivity by providing the light to the lower parts of the plant.
• Quality improvements: By providing more even light distribution you can get a more uniform development of the plant and the fruits.
• Efficiency enhancement: By having inter-canopy light underneath you may be able to reduce the intensity of the top lighting, making a more energy-efficient system.

Product features of the inter-canopy Led grow light

Housing material:

Aluminum

Optics materials:

PC cover (transmission >90%)

Radiation angle:

Double-sided 120° each side

Protection degree:

IP65 (dust and watertight)

The housing material is made of aluminum for a good heat conduction and resistance to rust.

• Aluminum as an excellent thermal conductivity making it ideal for heat dissipation in grow light housing.
• Aluminum is also having natural corrosion resistance; aluminum doesn’t rust when exposed to air, this makes it highly resistant to corrosion in an indoor farming environment.
• Aluminum is lightweight and durable so it also helps keeping the wight down in hydroponic structures and is a very durable and strong materiel for housing lights.

The optics materials are PC cover (transmission >90%)

Polycarbonate (PC) Transmits over 90% of visible light, ensuring bright and clear illumination

It as Highly durable and impact-resistant, making it less likely to break or shatter

The Weight Polycarbonate (PC) is lighter than glass, which can be beneficial for applications where weight is a concern.

The radiation angle of the light is of a spread of 120°.

• The LED Grow Lights will have a radiation angle of 120° on each side, meaning the light spreads out in a wide cone, covering a larger area.

This will be beneficial for having an even light distribution that will ensure a broad and even coverage, reducing the number of lights needed over your plants.

The protection degree is IP65 (dust and watertight)

Typically, the IP65 rating is a standard that indicates a high level of protection against both dust and water.

IP65 Protection Degree

• Dust protection:

The First Digit: 6 indicates a complete protection against dust ingress. This means that the device is dust-tight and that no dust can enter, ensuring reliable operation in a dusty environment.

• Water Protection

The Second Digit: 5 indicates protection against water jets from any direction. While the device can withstand low-pressure water jets, it is not designed or suggested to be submerged in water.

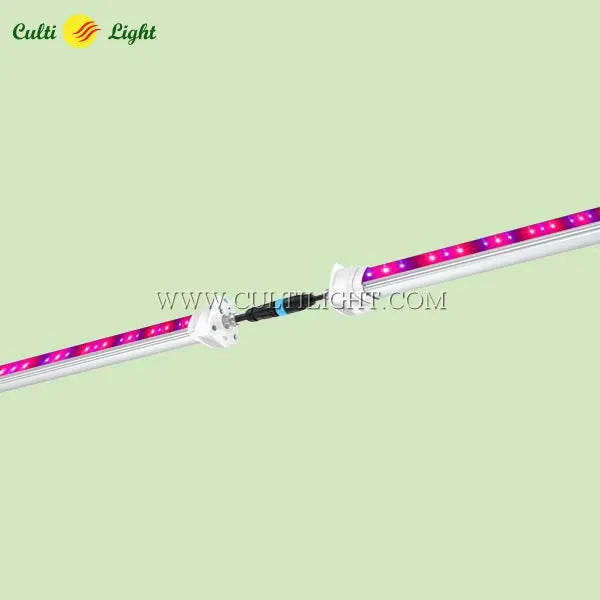

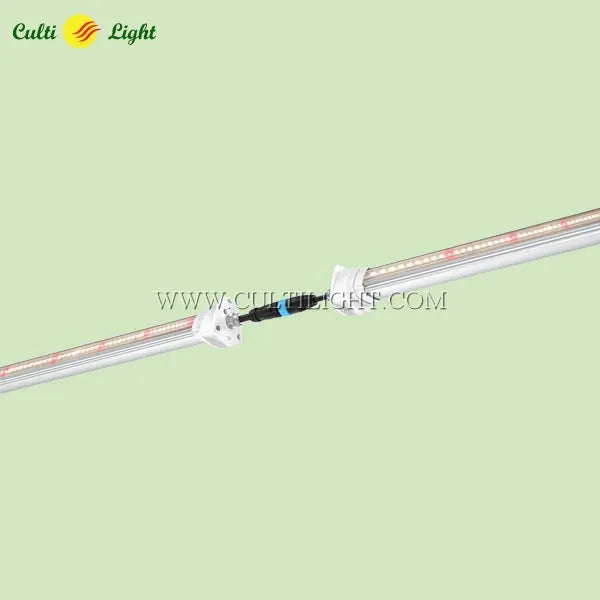

Daisy chain:

• M19 DC connector
• External driver connection
• 8 pcs 75W / 4 pcs 150W connected by a 600W driver DC ≤ 56 V.

Structure features:

• PC cover, get better protection for LEDs
• Under-canopy bracket kit design.
• Driver outside, get better heat dissipation
• High efficiency up to 3.0
• Dimming cable

Certification

Compliance

ETL Certification

CE Certification

Low Voltage Directive (LVD)

Electromagnetic Compatibility Directive (EMC)

Restriction of Hazardous Substances (RoHS) Directive

Coverage angle

Dimension

Technical data

Specification can vary depending on the spectrum used and updates to the light system. Please contact us for more details.

Item No.

CL-GL03-75 - inter-canopy LED grow light

CL-GL03-150 - inter-canopy LED grow light

Power consumption

75 W

150 W

System efficacy

2.3 µmol/J@56 V DC

2.3 µmol/J@56 V DC

PAR Output

173 µmol/s

345 µmol/s

ePAR Output

181 µmol/s

362 µmol/s

Voltage input

56 V DC

56 V DC

Current Range

1.5 A@56 V DC

3 A@56 V DC

Isolation Class

Class Ⅲ

Class Ⅲ

Heat BTU Generated

256 BTUs/h

512 BTUs/h

Dimming

0-10 V optional

0-10 V optional

Dimensions

1380 x 65 x 69 mm

54.33" x 2.56" x 2.72"

2500 x 65 x 69 mm

98.43”x 2.56" x 2.72"

Net Weight

1.5 kg/3.3 lbs

2.5 kg/5.5 lbs

Qty/CTN

4 pcs

4 pcs

G.W

7.0 kg/15.4 lbs

12.0 kg/26.5 lbs

CTN SIZE

1346 x 182x 198 mm

53”x 7.2”x 7.8”

2466 x 182 x 198 mm

97.1”x 7.2”x 7.8”

Operation conditions

0°C to 40°C/32°F to 104°F (95% RH)

 0°C to 40°C/32°F to 104°F (95% RH)

Storage conditions

-40°C to 70°C/-40°F to 158°F (85% RH)

-40°C to 70°C/-40°F to 158°F (85% RH)

Warranty

5 Years

5 Years

Optional Accessories:

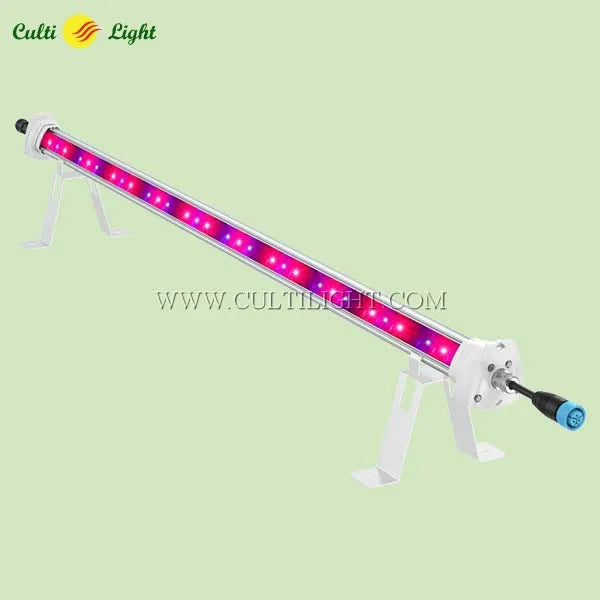

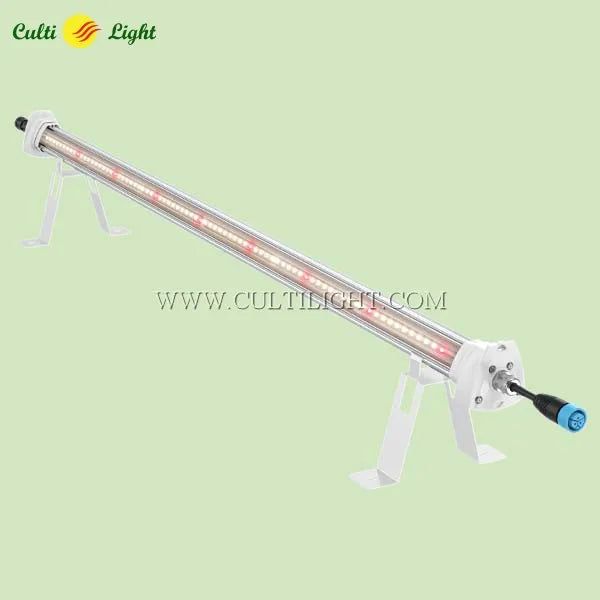

Bracket Kit Features：

• One set: 2 * brackets attach to 2 * clips
• White color, matching the LED fixture style.
• 25kg/55lbs load capacity, install the fixture very balanced and solid.
• stainless steel material, resists corrosion, heat and pressure.

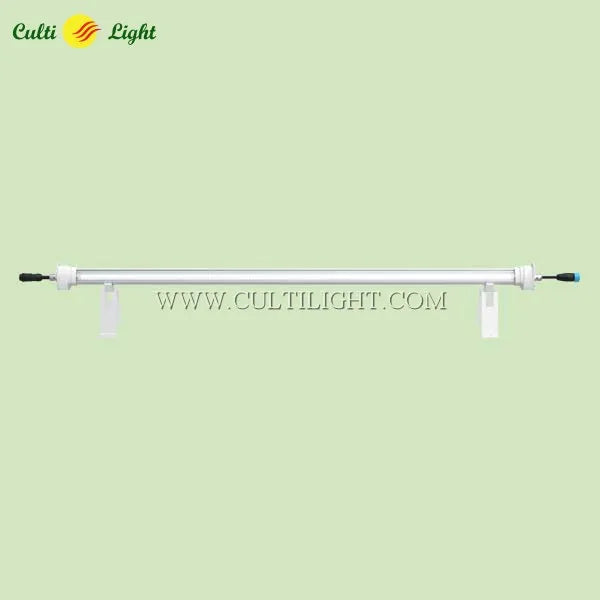

Bracket kit (12/25cm; 4.7/9.8” heights).

Rope kit 1*V hook attaches to 1*rope ratchet pulley.

For the electric connection.

We have many options as we can customize the type and length of the cables with different connectors according to your electrical requirements.

M19 DC connector and cable.

More about Grow lights and some terminology.

Grow lights come into play when you’re growing plants indoors — whether it’s due to limited natural light or simply because you’ll need to provide some artificial sunshine.

LED Grow Lights:

• They’re energy-efficient, customizable, and can mimic different parts of the sunlight spectrum. Plus, they won’t overheat your plants, which is always a bonus.

High-Intensity Discharge (HID) Lights:

• These are the heavyweights. They’re powerful and great for larger gardens. But be warned—they can get hot, so proper ventilation is crucial.

How Do LED Grow Lights Work?

The term LED stands for Light Emitting Diode

LED use semiconductors and electroluminescence to generate light.

LED grow lights emit a type of light that’s very similar to sunlight or a spectrum customized base on your needs.

The plants absorb the lights and recognize this light to grow (photosynthesis)

LED grow lights are very efficient as they use very little electricity and emit minuscule amounts of heat.

And with LED grow light you can also customize the spectrum to the need of different plants to grow.

Some of the advantage to use LED Grow Lights are that they speed up the growth of the plants, encourage their flowering, and keep your plants very joyful and healthy.

Compliance meaning.

CE certification

The CE certification, or Conformité Européenne (European Conformity), is a regulatory standard that ensures this product meet EU safety, health, and environmental protection requirements.

ETL certification

ETL certification is a mark of quality and safety for electrical, mechanical, and other products, it indicates that the product has been tested and meets the necessary safety standards for North America.

Also, the ETL mark is proof of compliance with North American safety standards. It is recognized by authorities and code officials across the US and Canada.

Low Voltage Directive (LVD)

The Low Voltage Directive (LVD), officially known as Directive 2014/35/EU, is a crucial piece of legislation in the European Union.

The LVD ensures that electrical equipment operating within certain voltage limits provides a high level of protection for European citizens.

It harmonizes the laws of EU member states for ensuring consistent safety standards across their market.

The products must ensure they meet essential health and safety requirements before they can be marketed in the EU.

Electromagnetic Compatibility Directive (EMC)

The Electromagnetic Compatibility Directive (EMC), officially known as Directive 2014/30/EU, is a key regulation in the European Union.

The purpose of the EMC Directive Is to ensure that the electrical and electronic equipment does not generate electromagnetic disturbances that could interfere with other devices. It also ensures that such equipment is not susceptible to interference from other sources.

Restriction of Hazardous Substances (RoHS) Directive

The Restriction of Hazardous Substances (RoHS) Directive, which is officially known as the Directive 2011/65/EU, is a significant regulation in the European Union aimed at protecting human health and the environment.

The Health and Environmental Protection directive restrict the use of specific hazardous substances in electrical and electronic equipment (EEE) to reduce environmental and health risks by promoting safer alternatives in the manufacturing of products.
